产品特性：

·Switching current:100A ·Twopole/phase relay ·L-L N-N ·RoHS / CE ·IEC62055-31 UC3 (TUV)

适用范围：

For Prepayment energy Meter and AMR system Combination switch, reactive power compensation devices and automatic control.

文件下载：

点击下载点击下载点击下载

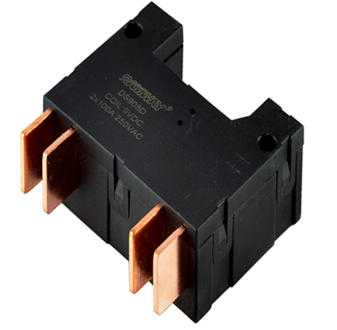

DS908D 24vdc 100A Latching relay

Use area:

For Prepayment energy Meter and AMR system

Combination switch, reactive power compensation

devices and automatic control.

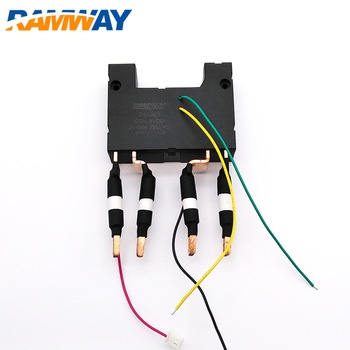

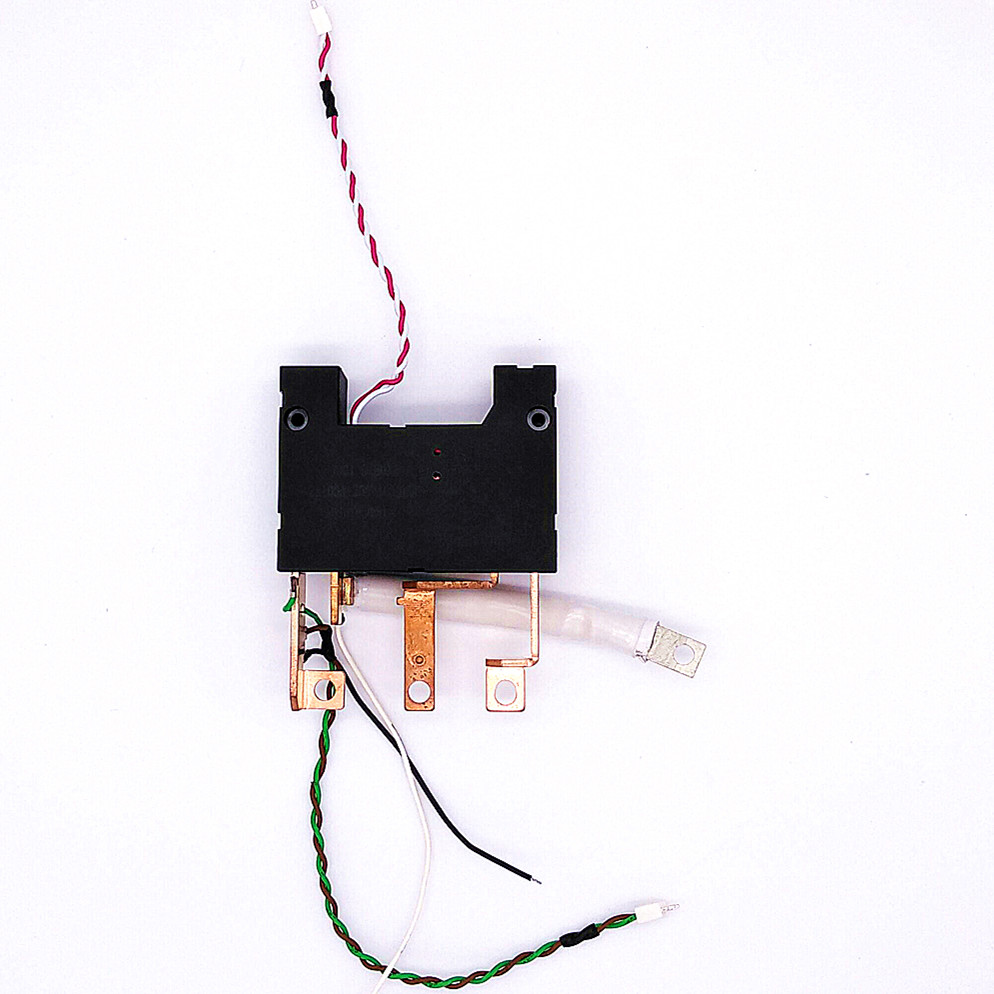

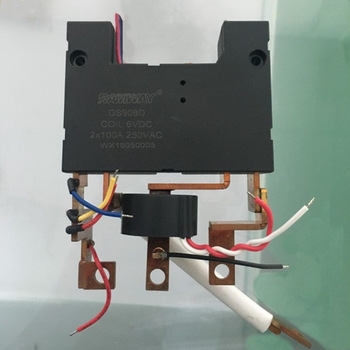

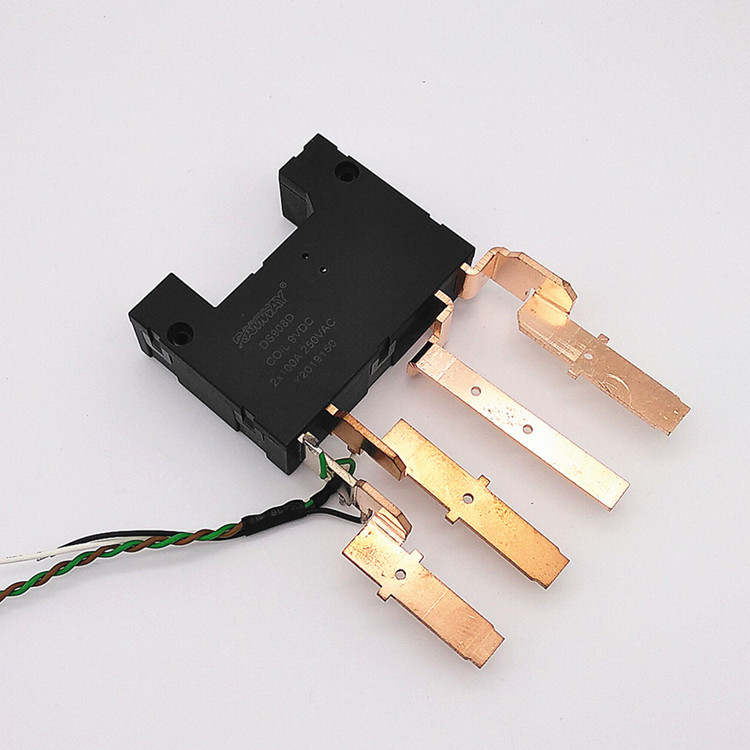

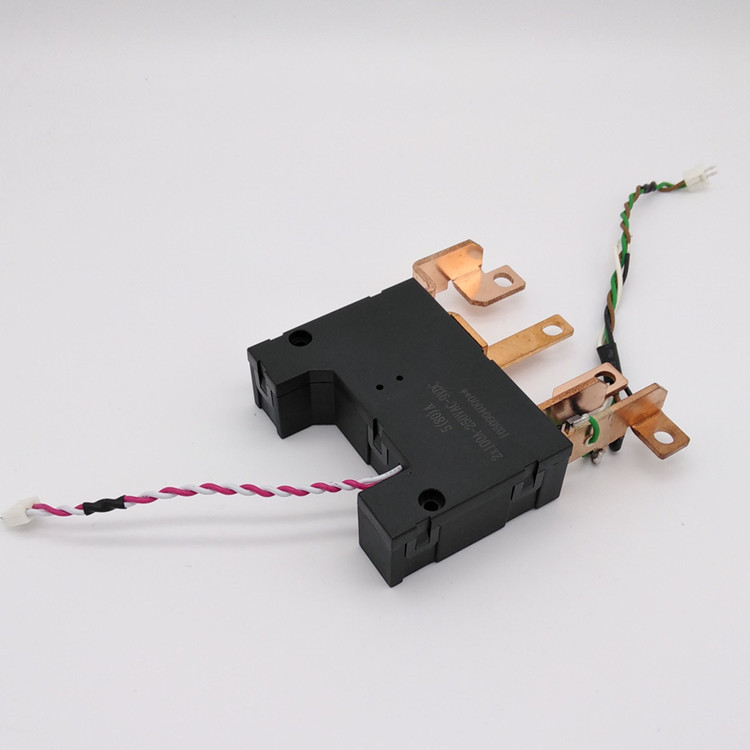

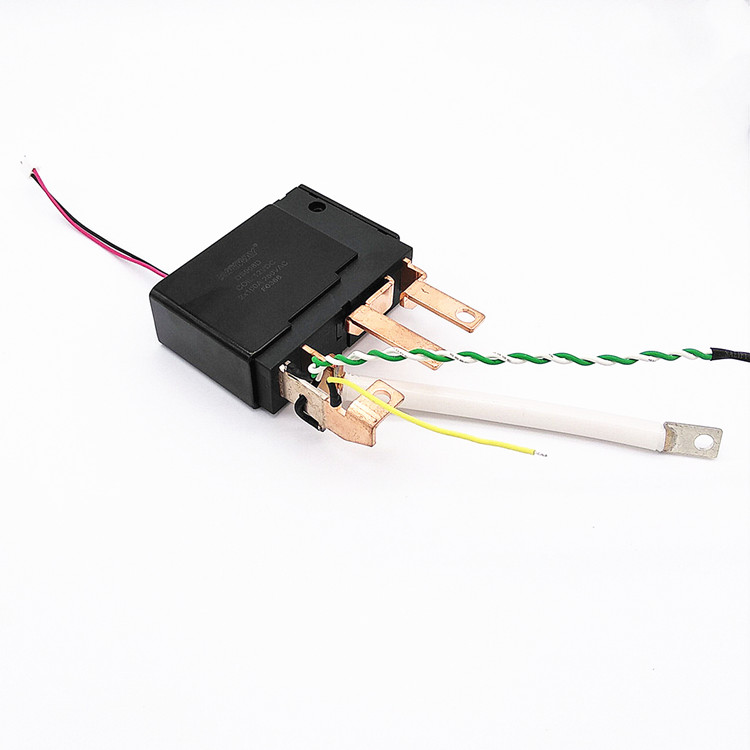

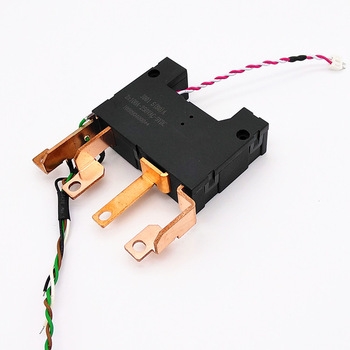

Terminal type designed according to customer drawings

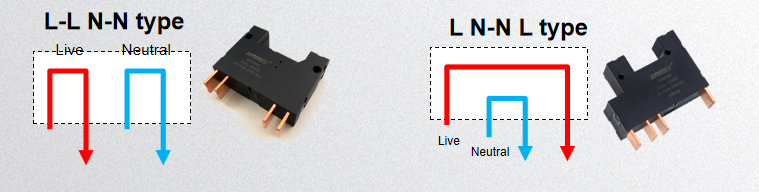

paste-pic-dp_uuid_w580f

Basic parameter

Coil pulse width	50ms Min
Operatino time	20ms Max.
Comeback time	20ms Max.
Dielectric strength (50/60Hz)	Between coil &contact 4000VAC/min
Dielectric strength (50/60Hz)	Between contacts 2000VAC/min
Insulation resistance	Min.1000MΩ(500VDC)
Ambient Temp.	-40℃~+85℃
Weight	130g
Terminal type	OEM / ODM
Package	Standard Export Carton(40x35x35 cm) inner boxes(19x16x12 cm)

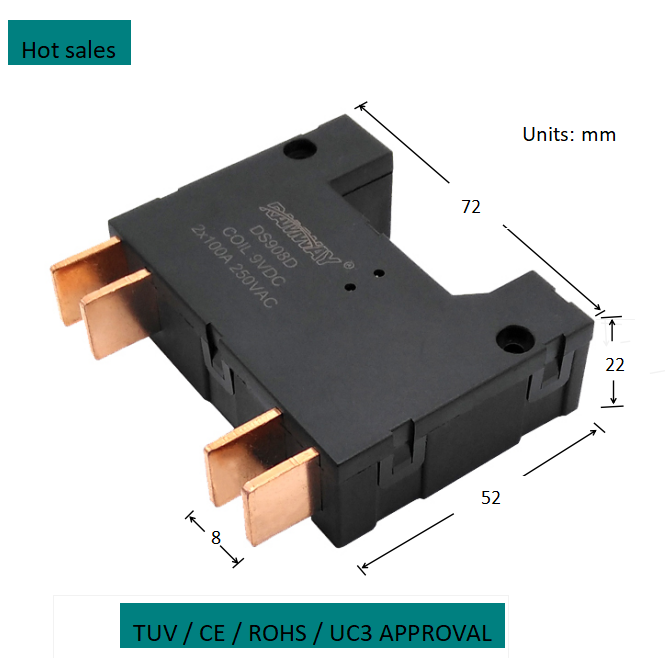

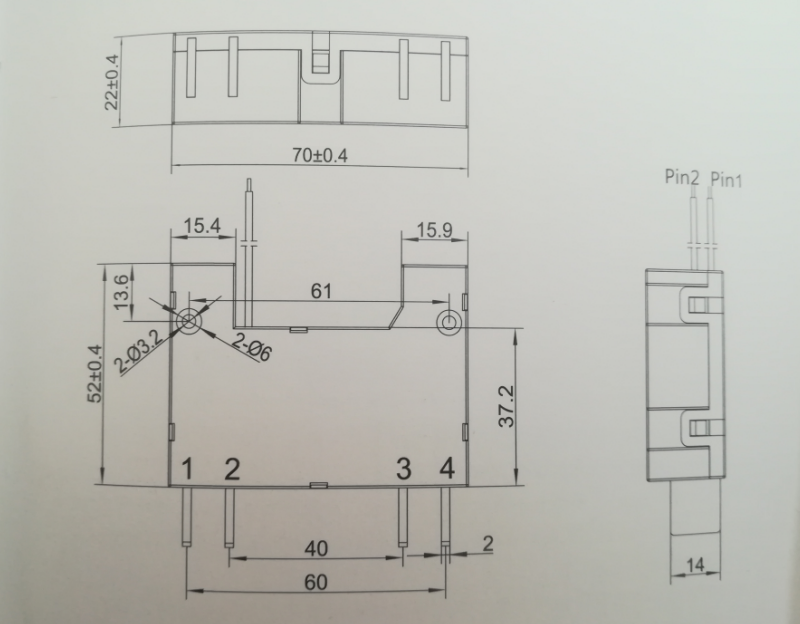

Size(mm)	70X52X22

Contact parameter

Contact form	2A 2B
Contact material	Silver Alloy ( AgSnO2 )
Contact resistance	0.8mΩ Max.(12VDC 1A)
Contact current (CosΦ=1)	100A 250VAC
Max disconnection voltage	440VAC/110VDC
Max disconnection power	25,000VA
Electrical life	5,000cycles(load) resistive / 5,000cycles sensual
Mechanical life	1*10⁵ cycles

Coil parameter

Rated Voltage	Resistance±10%(Ω)		Rated power of the coil(w)	Rated Voltage(VDC)
Rated Voltage	Single	Dual	Rated power of the coil(w)	Rated Voltage(VDC)
6	8	4*2	2.1	≤70% Rated voltage
9	18	9*2	4.1
12	32	16*2	4.2
24	128	64*2	4.3

Typical type

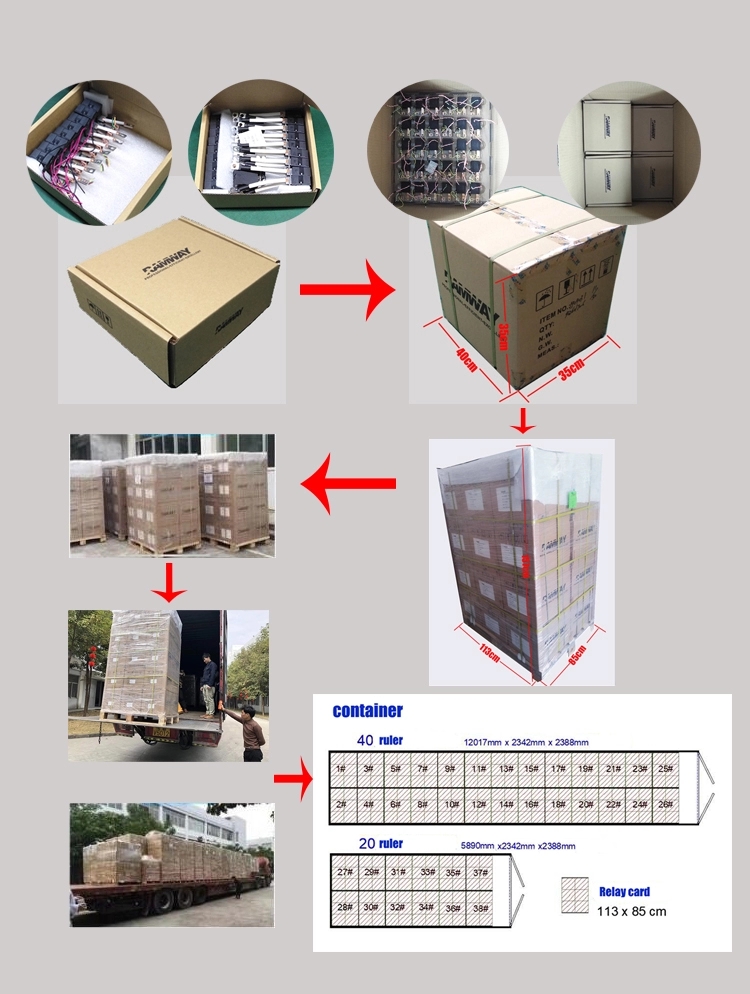

Packaging & Shipping

1.Standard Export Carton(40x35x35 cm)
inner boxes(19x16x6 /12cm)
Lined with EPE Cotton
2.According to your requirements

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-30 days, it is according to quantity and terminal customized requirements.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

触点特性/Contact specification

Parameter	Date
Contact material	AgSnO₂
Contact resistance	Max.0.8mΩ（12VDC 1A）
Contact currentt	100A 250VAC
Max disconnection voltage	440VAC/110VDC
Max disconnection power	25000VA
Electrical life	5000cycles(load）resistive 5000cycles sensual
Mechanical life	100000 cycles

Basic parameter

Parameter		Date
Coil pulse width		Min. 50ms
Operation time		Max.20ms
Comeback time		Max.20ms
Dielectric strength	Between contact & coil	4000VAC 1min
Dielectric strength	Between contacts	2000VAC 1min
Insulation resistance		1000MΩ（at 500VDC）
Ambient temp		-40~+85℃
Weight		130g
